Developer Guide

Acknowledgements

{list here sources of all reused/adapted ideas, code, documentation, and third-party libraries – include links to the original source as well} Formatting of Developer’s Guide was done with reference to AddressBook-Level3 developer guide.

Design & implementation

{Describe the design and implementation of the product. Use UML diagrams and short code snippets where applicable.}

Parser component

API: Parser.java

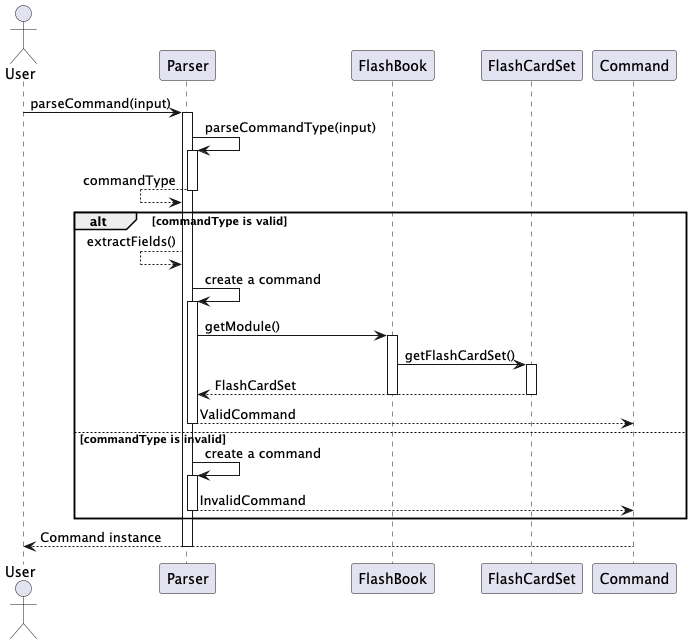

Parser’s role is to given user input create a command which then can be executed. This particular implementation follows Factory design pattern. It exposes a general purpose method for parsing command parseCommand(String input) and then it determines command types and creates one of the type. Regular expressions are heavily used for extracting information from input. More details are presented on a sequence diagram someName.

Alternative approaches/Possible improvements:

• Command factory could be moved to a separate class
• Creating a lexer object might be a desirable approach if the commands where much more complex

Structure

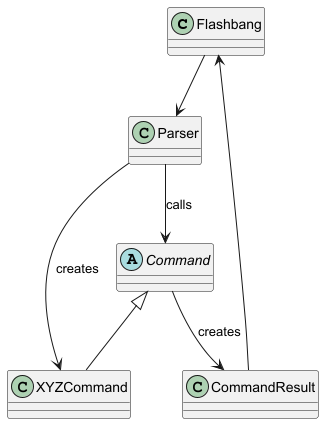

Below is a partial class diagram showing the interactions of the Parser class.

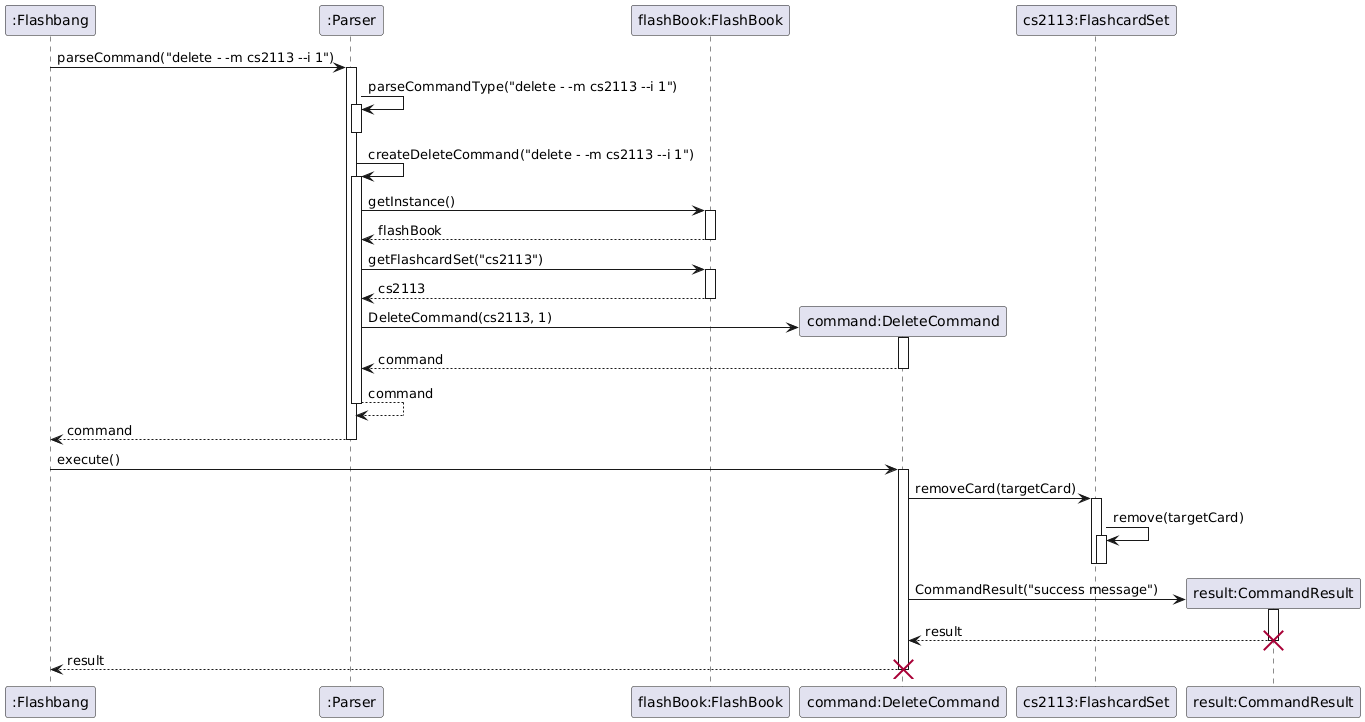

The sequence diagram below illustrates the interactions taking parseCommand(“delete --m cs2113 --i 1”) as an example.

Example

How the Parser component works: The Parser receives the command input. It identifies the command type using parseCommandType. Depending on the command type, it creates the corresponding command object (e.g., AddCommand). The created command is executed, producing a CommandResult. The CommandResult is then used by Ui to provide feedback to the user.

Ui component

API: Ui.java

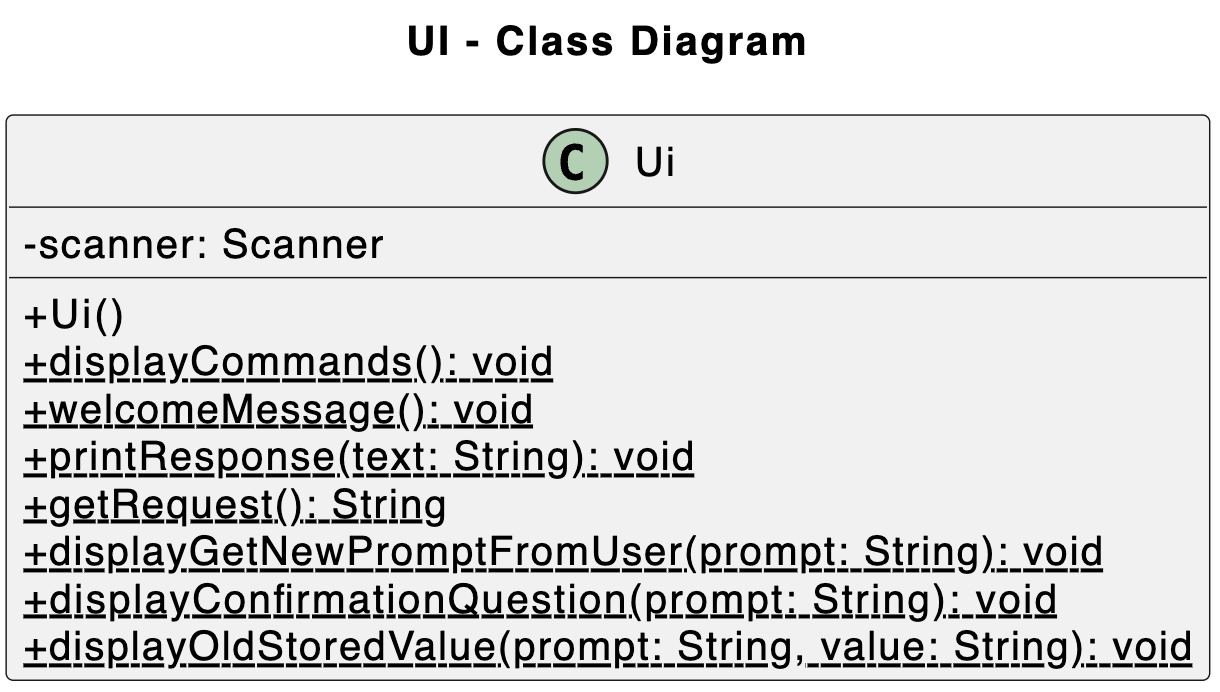

Below is a particular class diagram showing the interactions of the Ui class.

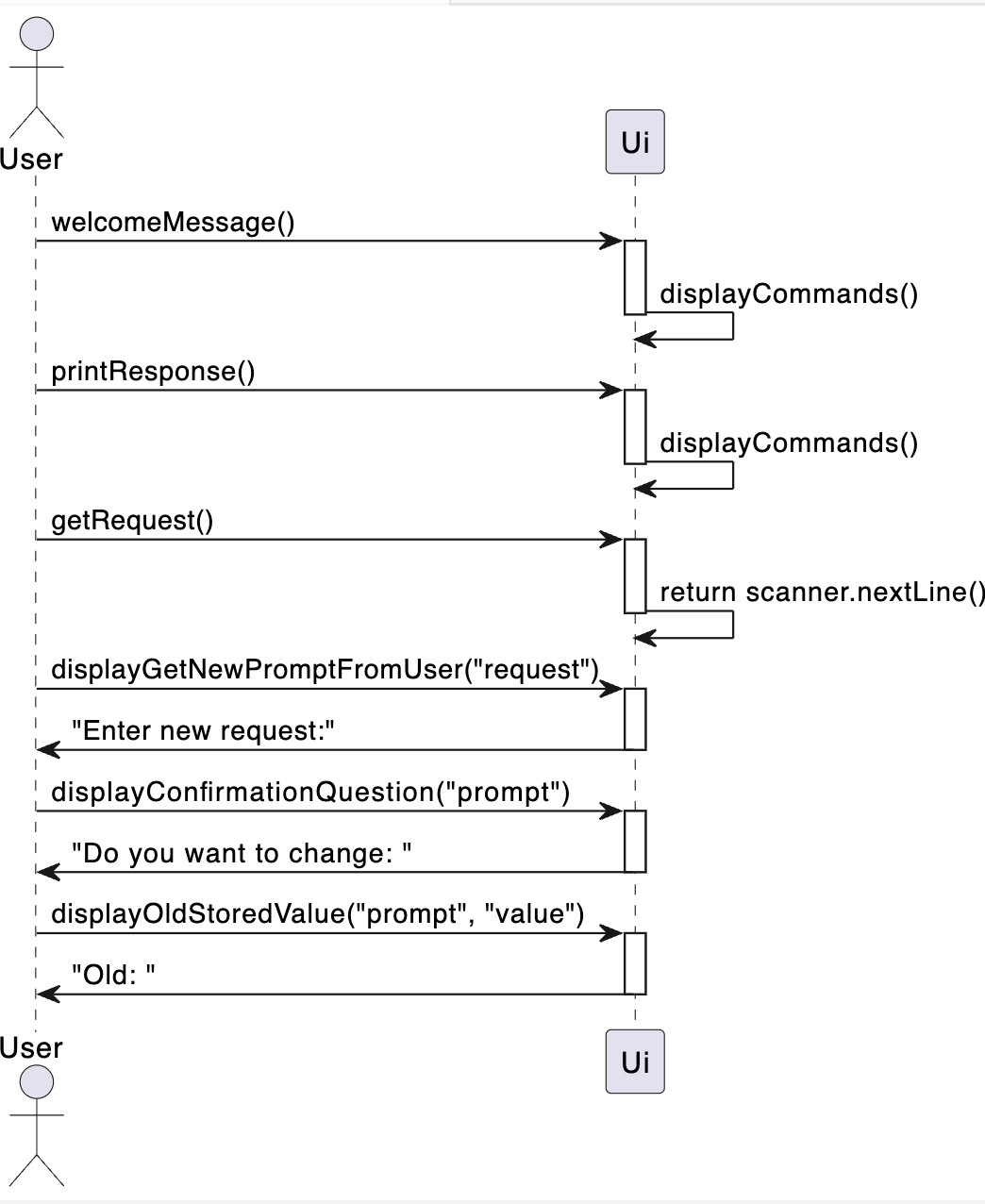

The sequence diagram below illustrates the interactions between the user and this class when the program is executed.

How the Ui component works: The Ui serves as a centralized utility that handles all outputs. When a user execute the app, this class displays the welcome message and all available commands. After that, based on users’ inputs, it handles the output that is processed by other classes.

Storage component

API: Storage.java

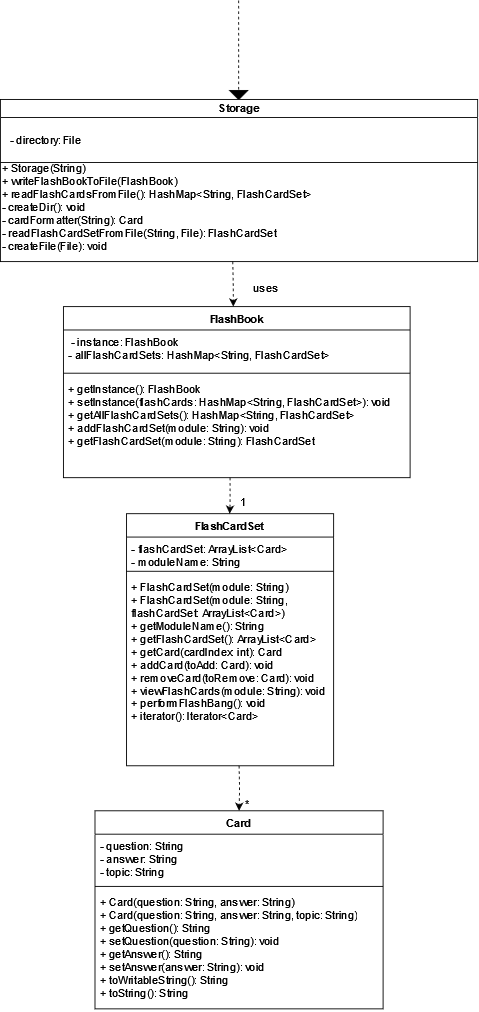

Below is a class diagram showing the interactions of the Storage class.

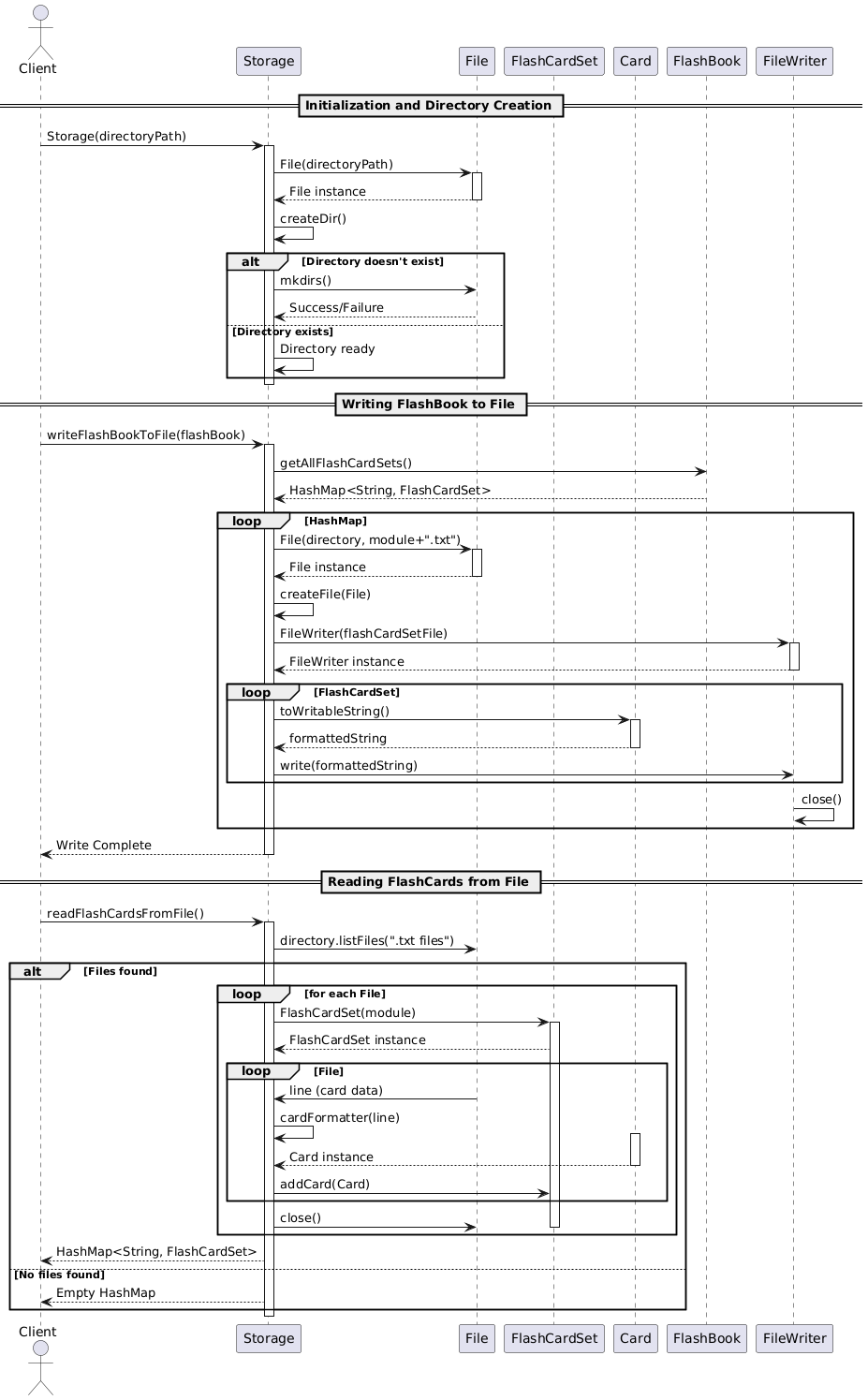

The sequence diagram below illustrates the interactions taking writeFlashBookToFile() and readFlashCardsFromFile().

How the Storage component works: The Storage component is initialized with a directory path where flashcard data will be stored. To save data: writeFlashBookToFile() is called, iterating through each FlashCardSet in FlashBook. For each FlashCardSet, a corresponding file is created in the directory, and each Card in the set is written to this file. To load data: readFlashCardsFromFile() checks the directory for flashcard files. For each file found, readFlashCardSetFromFile() is called to read the cards and create a FlashCardSet. The FlashCardSet is then added back to the FlashBook, reconstructing the flashcard library in memory.

Command Structure

API: commands

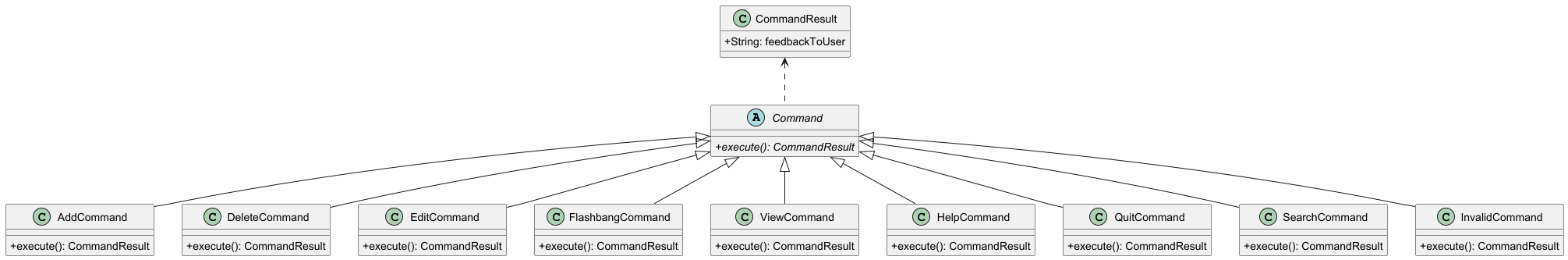

Below is a class diagram to showcase the class structure of the Command classes

This class diagram shows how the Command classes are used to generate independent behaviour for each of the commands. The use of an abstract class Command that all the commands inherit from is to utilise polymorphism in the main loop such that all an instance of any command can be called and executed to perform each commands function. For example, when the user inputs add --m CS2113 --q What is OOP? --a Object-Oriented Programming an instance of an AddCommand will be created which is then executed creating a CommandResult object.

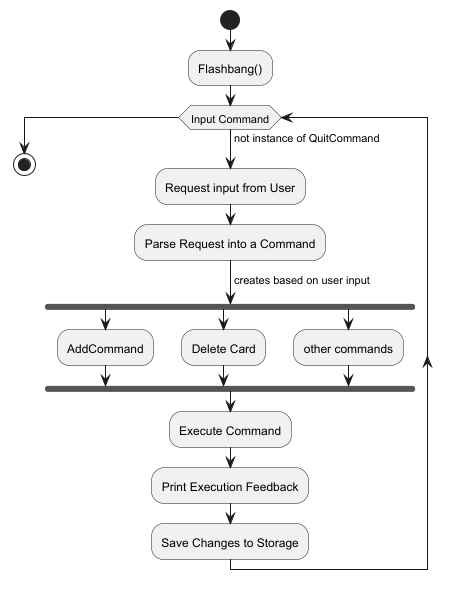

This behaviour is modelled in the Activity Diagram below:

Product scope

Target user profile

• Has a need to create flashcards for their studies
• Needs to be able to test themselves on flashcard content
• Needs to be able to track how well they understand the modules they take
• Can type fast
• Prefers typing to mouse interactions
• Is used to using CLI applications

Value proposition

Give university students a simple and effective flashcard application which allows them to create flashcards for the many modules and topics they have for schools. Flashcards are used to test the student’s knowledge and also organise the content of the module in a simple and clear way.

User Stories

| Version | As a … | I want to … | So that I can … | |———|———-|———————————————————–|———————————————————————————-| | v1.0 | new user | see usage instructions | refer to them when I forget how to use the application | | v1.0 | student | view existing flashcards | test my knowledge to study efficiently | | v1.0 | student | view existing flashcards | review and learn material | | v1.0 | crammer | delete flashcards which im confident at | focus on my areas of weakness | | v1.0 | student | review flashcards that I have answered incorrectly | identify my knowledge gaps | | v2.0 | student | have a timer within the app | able to time myself taking the quizzes within the app itself for better learning | | v2.0 | student | view all incorrect flashcards in previous quizzes | focus more on my weak areas | | v2.0 | user | search for flashcards based on keyword and module | test myself on specific topics | | v2.0 | student | keep track of how many right and wrong answers in quizzes | focus on how well versed I am in a topic | | v2.0 | student | filter flashcards by difficulty | choose which ones to focus on based on my current level of understanding |

Non-Functional Requirements

• Should work on any mainstream OS as long as it has Java 17 or above installed
• Should be able to handle any number of modules as long as there are no repeated module names
• A user with strong typing ability should be able to use the application faster than with a mouse

Glossary

• Flashcard - a card containing a small amount of information as an aid to learning. Contains a question and an answer related to a topic.

Instructions for manual testing

Launch and shutdown

Initial launch

1. Download the jar file and copy into an empty folder
2. Open the jar file using your command line with the command: java -jar {Path of File}

   Shutdown

3. Type quit to exit the application
4. Quitting the application also saves all changes made by the user during runtime
   Expected: Application exits and the text files in ./data are updated accordingly

   Adding Flashcards

5. Adding flashcards into the flash book
   1. Test case: add --m CS2113 --q What is OOP? --a Object-Oriented Programming
      Expected: A Card with question “What is OOP” and answer “Object-Oriented Programming” in the module “CS2113”
   2. Test case: add
      Expected: An error is thrown and caught printing out “uh oh bad command”
   3. Other incorrect add commands to try: add --q, add --a (with missing fields or empty fields)
      Expected: Similar to previous

      Deleting Flashcards

      Prerequisites: There are a several flashcards in the flash book listed out using the view command

6. Deleting flashcards from the flash book
   1. Test case: delete --m CS2113 --i 1
      Expected: the first flashcard in the CS2113 flash card set is deleted. Details of the deleted card should be shown
   2. Test case: delete
      Expected: An error is thrown and caught printing out “uh oh bad command”
   3. Other incorrect variations to try: delete --m ModuleNotInList --i 0, delete --m (with missing fields or modules not in the flash book)
      Expected: Similar to previous

      Flashbang

      Prerequisites: There are a several flashcards and flashcard sets in the flash book

7. Quizzing users on the flashcards in a module
   1. Test case: flashbang --m CS2113
      Expected: Each question within the module is displayed sequentially where users are prompted to reveal the answer to the question with y or n
   2. Incorrect variation to try: flashbang, flashbang --m
      Expected: An error is thrown and caught printing out “uh oh bad command”
   3. Other incorrect variations to try: flashbang --m ModuleNotInList
      Expected: An error is thrown and caught printing out “uh oh bad command”
